2000LPH chemical manufacturing and food & beverage industry EDI ultrapure water system

Principle of Electro-deionization (EDI)
Electro-deionization (EDI) system is mainly the role of the electric field, through the partition of ions in water dielectric directional movement, the use of ion exchange membrane to the choice of water quality through the role of a science of water purification technology .

Ultrafiltration Reverse Osmosis + EDI System Features

1.Higher producing water quality
2.High rate of desalination
3.Utilization rate reach up over 95%
4.Resin doesn't need to regenerate
5.Convenient :running\operation\maintenance
6.It has standard design, Module can be piled according to requirements of producting water,to adapt requirements of more water yield
7.It has Low operating cost,low consumption

Ultrafiltration Reverse Osmosis + EDI System Application:

 1. Chemical water treatment of power plant

 2. Electronics, Semiconductor, Precision Mechanism industries' ultra-pure water

 3. Preparation of Foods, Beverage, drinking water

 4. Small Purified Water Station, Group drinking water

 5. Water for Fine Chemical Industry, Fine tip subjects

 6. Preparation of ultra-pure water for other industries

 7. Pharmaceutical Industry process water

 8. Desalination of sea water and brackish water

PICTURES SHOW

                                                               FRONT

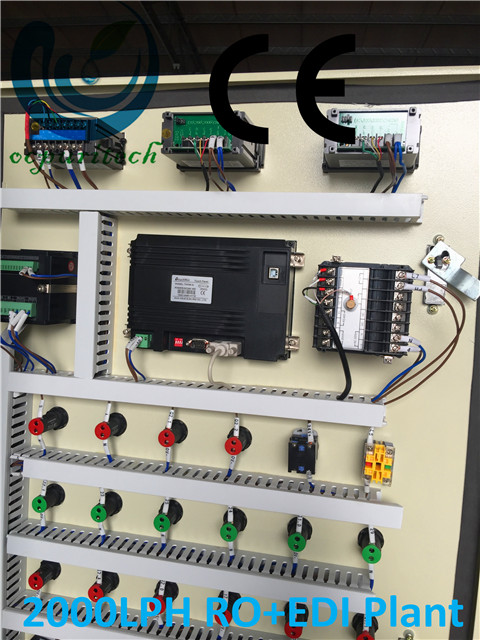

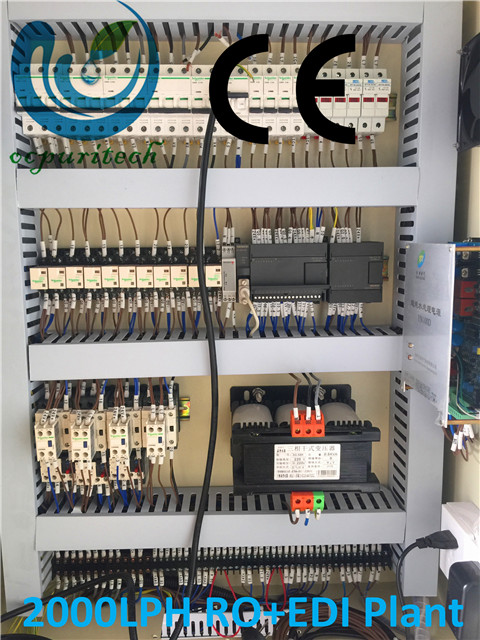

                                                          BACK

Basic configuration

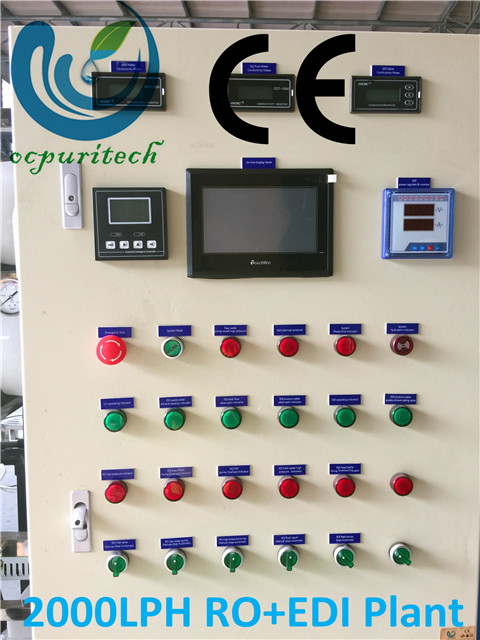

                                                 CONTROL  PANEL

Ultrafiltration Reverse Osmosis + EDI System Parameter

EDI module.:1PCS

MX-200

Voltage(V):50-200  Current(A):0.5-5

Conc.water discharge flow :150-300lph

Requirement of Feed water conductivity:1-20μS/cm

Scope of PH of feed water:7.5-9

Scope of Product water Pressure more than Pressure Conc.in : 0.3-0.5 bar

Product water  resistivity:6.15-18.18 MΩ.cm

Guangzhou Ocean Environment Protection Technology Co., Ltd  is specialized in water purifier for household and industrial water treatment. Our main products include RO device, Ultra filtration ,Micro filter,sand and carbon filter equipment,etc.These products completely set of equipment for school, factory, and hospital . Besides ,we are manufacturing tap water and mineral water equipments.

We have been devoted ourselves in water purification for many years,and our engineers can make different types of water treatment equipments. We have the expertise to manufacture water treatment equipments of different sizes, capacity and optional functions. And we also provide relative products such as FRP tank, valves, filter cartridge and membranes etc. Under our excellent products and patience serive ,we have earned a great reputation for our product quality , performance reliability and business integrity .

Packaging: Wooden Case; Carton Box or Export Neutral Packing

Shipping: We will choose the fastest with the cheapest shipping mode for you by air, sea or courier.
