3000LPH 18000 GPD industrial Reverse Osmosis RO membrane water purification methods

Product Information
Customer Reviews

Product Details

Aomi adheres to the principle of 'details determine success or failure' and pays great attention to the details of Seawater Desalination deionized water system.Aomi's reverse osmosis system greatly improve production efficiency. They are of compact structure, stable performance, reliable quality, high cost performance, and wide application.Good materials, advanced production technology, and fine manufacturing techniques are used in the production of Seawater Desalination deionized water system. It is of fine workmanship and good quality and is well sold in the domestic market.

Enterprise Strength

With a focus on talents cultivation, Aomi established an innovative talent team. The team members have innovative thinking and management capabilities.
Aomi abides by the service attitude to be sincere, patient and efficient. We always focus on customers to provide professional and comprehensive services.
Based on people-oriented business, Aomi pays great attention to integrity during development. Our core value is to pursue excellence and achieve mutual benefit. We constantly improve production technology, so as to provide consumers with better products and more professional services. It is our commitment to become a well-known modern enterprise in China.
Having developed rapidly for years, Aomi is a machinery manufacturer with a relatively large scale and great business capability.
Aomi transformed the tradition sales mode and joined E-commerce. We combined online and offline channels to expand the market and construct a more comprehensive sales network.

Company Advantages
1. Ocpuritech osmosis system delivers incomparable design concepts. Processed by precise spare parts, Ocpuritech machine enjoys very low failure rate
2. The product meets strict quality standards. Ocpuritech water treatment machines can guarantee the health and hygiene of the water
3. Product quality has passed a number of international certification. Easy operation is one of the features Ocpuritech products enjoy
4. The product is widely used in various industries.
5. The product is highly preferred among customers for its competitive advantages. 500 kinds of machines can be applied for different industries

Ocpuritech-3000lph 18000 Gpd Industrial whole house reverse osmosis water filter

product description

RO membrane is a spiral wound sheet of semi-permeable material.Reverse osmosis of water purification is stable over a wide range of pH and temperature, and have good mechanical integrity. The stability of these properties over a period of time at field conditions defines the commercially useful membrane life, which is in the range of 2 to 3 years. High recovery rate of RO membrane is up to 55%-70%, and high desalination rate of RO membrane water purification is 96%-99%.Need healthy, great-tasting, fresh, clean, purified water at an affordable price. OCPURITECH provide you high-performance water purification methods.

Ocpuritech-3000lph 18000 Gpd Industrial whole house reverse osmosis water filter-1

product advantages

1.good mechanical integrity
2. long service life
3.over 15 years experience in water treatment system

Ocpuritech-3000lph 18000 Gpd Industrial whole house reverse osmosis water filter-2

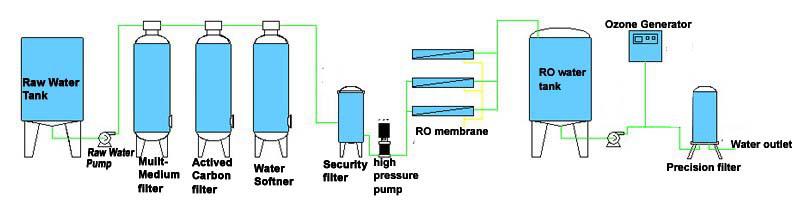

Flow Chart

Raw water pump --Automatic sand filter--activate carbon filter----precision filter--High pressure pump-- RO system-- UV sterilizer

Function

Item	Function
Raw water pump	provide the pressure to quartz sand filter/active carbon filter
Automatic sand filter	Get rid of turbidity, suspended matter, organic matter, colloid, ect
Activate carbon filter	Remove the color, free chloride, organic matter, harmful matter, ect.
precision filter	prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um
High pressure pump	Provide the high pressure to RO membrane
RO system	main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions
UV sterilizer	kill bacteria

Description

Capacity	3000LPH/18000GPD
Voltage	220V/50Hz,220V/60Hz,Single phase
Recovery	50%-70%
Desalination	96%-99%
Membrane Qty	6pcs
Temp of raw water	1-45℃
Feed Water Pressure	1-5 bar
Raw water TDS	0-1000ppm
Application raw water	Tap water,Brackish water,Sea water
Raw water pump	CNP,Shimge
RO Membrane	Vontron,Dow

Item name	Material
Raw water pump	SS304
The pipe of raw water pump	PVC
FRP Tank	FRP
up and down water distributor	ABS
Pressure gauge	assembly
control valve	Engineering plastics
HP PUMP	SS304
RO Membrane housing	FRP
Pure Flow meter	Plexiglas Panel
waste Flow meter	Plexiglas Panel
Conductivity meter	engineering plastics
Pressure switch	brass
inlet valve	brass
flush valve	brass
Regulating valve	brass
UV sterilizer	SS304
Electronic control system	air switch.electric relay.contractor.switch.LED
control box	SS304 /Mild Steel
Frame	SUS304
pipeline	UPVC 3/4''

product details

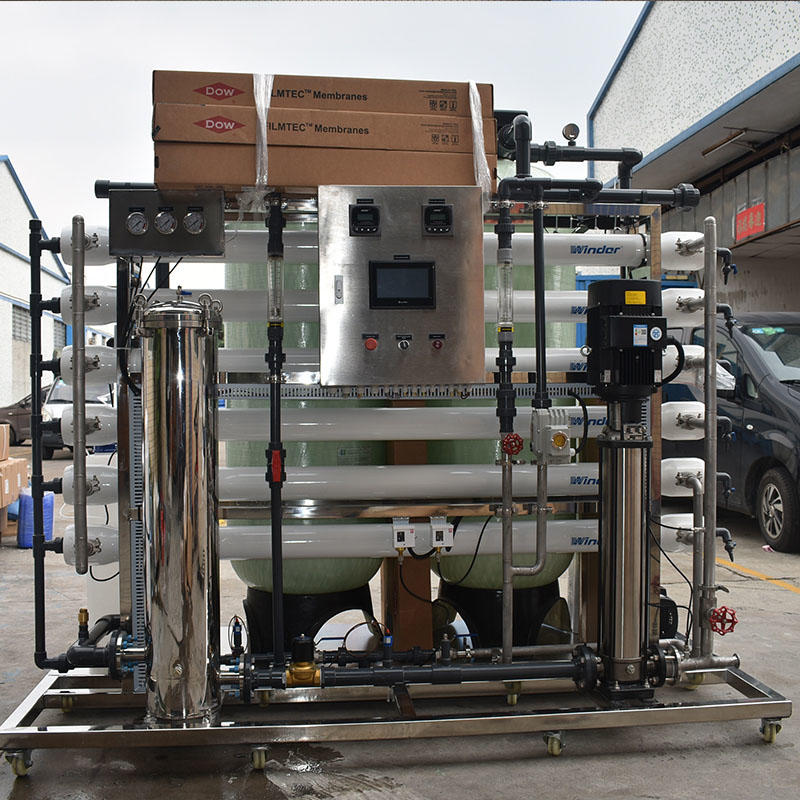

Front view

Ocpuritech-3000lph 18000 Gpd Industrial whole house reverse osmosis water filter-3

NCP raw water pump and high pressure pump, stainless steel good quality and long lasting

Ocpuritech-3000lph 18000 Gpd Industrial whole house reverse osmosis water filter-4

Back view

Ocpuritech-3000lph 18000 Gpd Industrial whole house reverse osmosis water filter-5

Ocpuritech-3000lph 18000 Gpd Industrial whole house reverse osmosis water filter-6

Automatic valves:easy to control

Ocpuritech-3000lph 18000 Gpd Industrial whole house reverse osmosis water filter-7

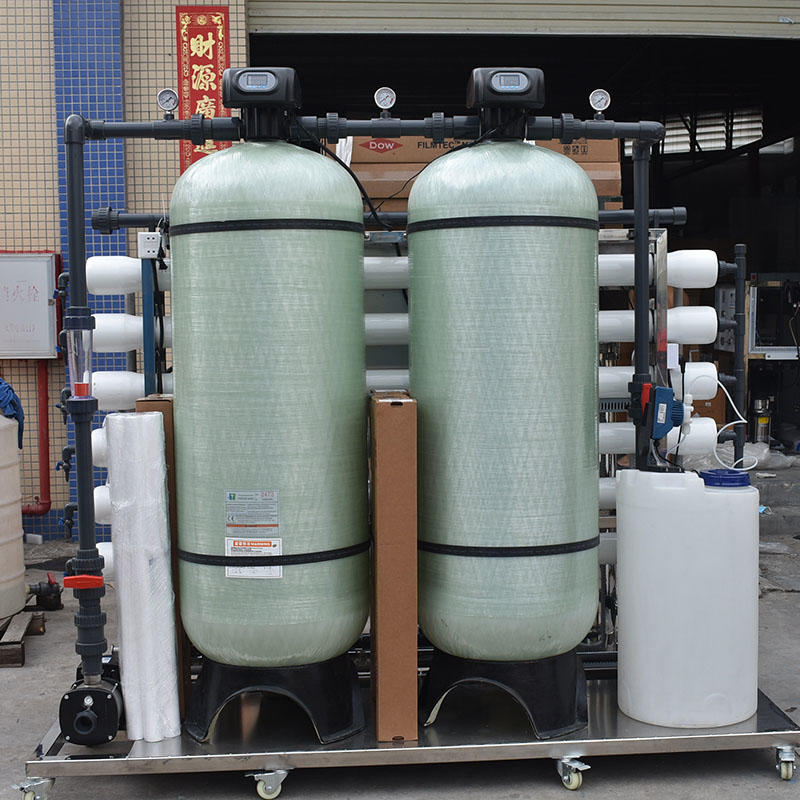

Sand filter+Activated carbon filter:removal out all Types Of Contaminants and Odor off the water

Ocpuritech-3000lph 18000 Gpd Industrial whole house reverse osmosis water filter-8

Good brand Vontron Membrane with high quality FRP membrane housing can keep lasting 2-3 years,remove 90 to 99.99% of the dissolved impurities that reside in your water

Ocpuritech-3000lph 18000 Gpd Industrial whole house reverse osmosis water filter-9

Electronic control system：air switch.electric relay.alternating current contractor.switch.LED

Ocpuritech-3000lph 18000 Gpd Industrial whole house reverse osmosis water filter-10

Precision filter:add filter cartridge to protect membrane and extend membrane service life

purchase related accessories

Ocpuritech-3000lph 18000 Gpd Industrial whole house reverse osmosis water filter-11

FRP tank

Ocpuritech-3000lph 18000 Gpd Industrial whole house reverse osmosis water filter-12

Distributor

Ocpuritech-3000lph 18000 Gpd Industrial whole house reverse osmosis water filter-13

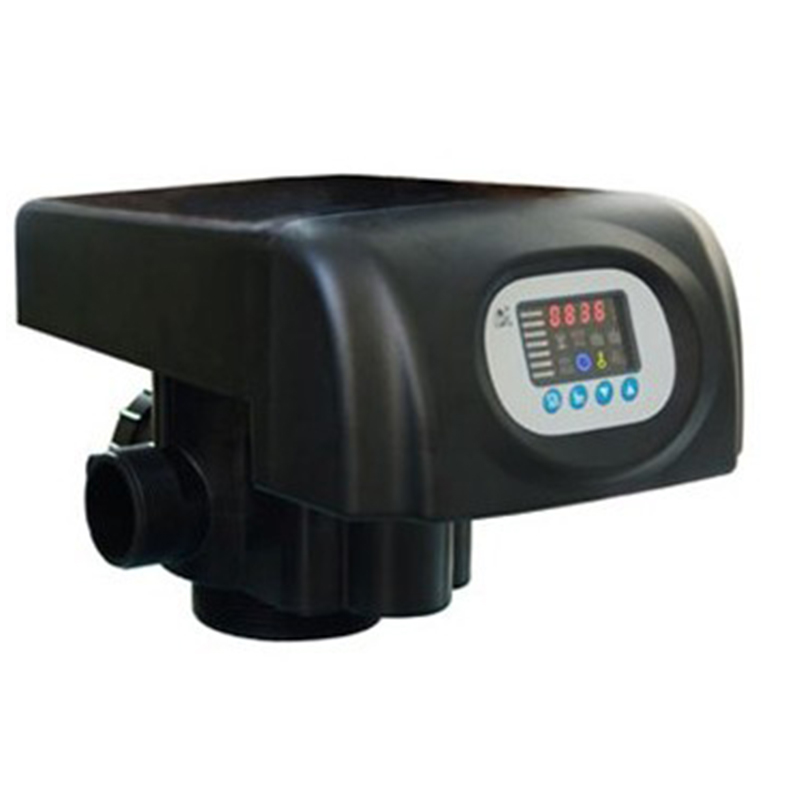

Multiport Valve

Ocpuritech-3000lph 18000 Gpd Industrial whole house reverse osmosis water filter-14

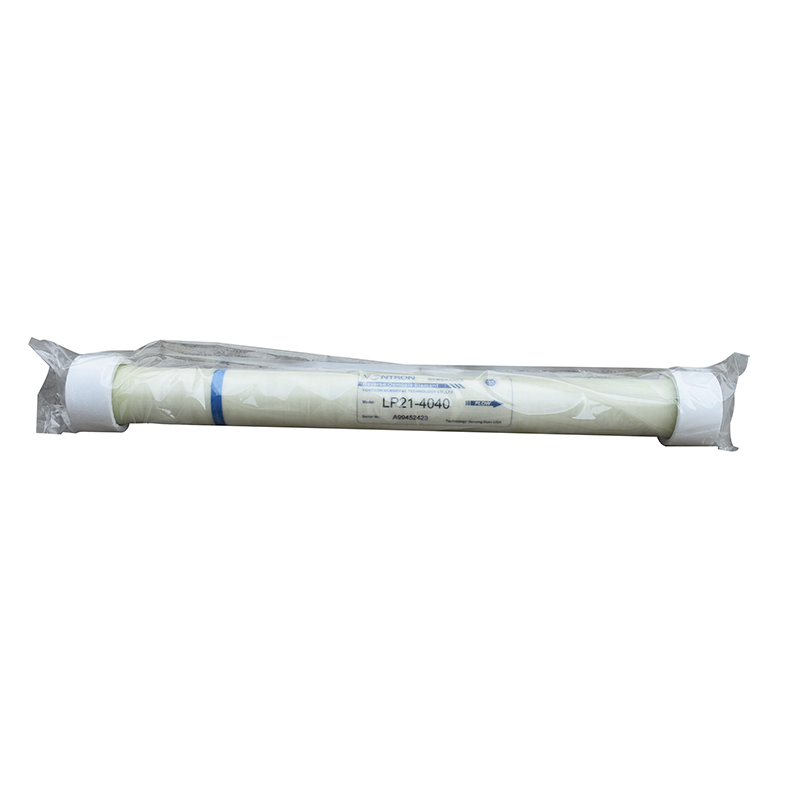

Membrane

Ocpuritech-3000lph 18000 Gpd Industrial whole house reverse osmosis water filter-15

high pressure pump

Ocpuritech-3000lph 18000 Gpd Industrial whole house reverse osmosis water filter-16

Membrane Housing

Ocpuritech-3000lph 18000 Gpd Industrial whole house reverse osmosis water filter-17

CTO filter cartridge

Ocpuritech-3000lph 18000 Gpd Industrial whole house reverse osmosis water filter-18

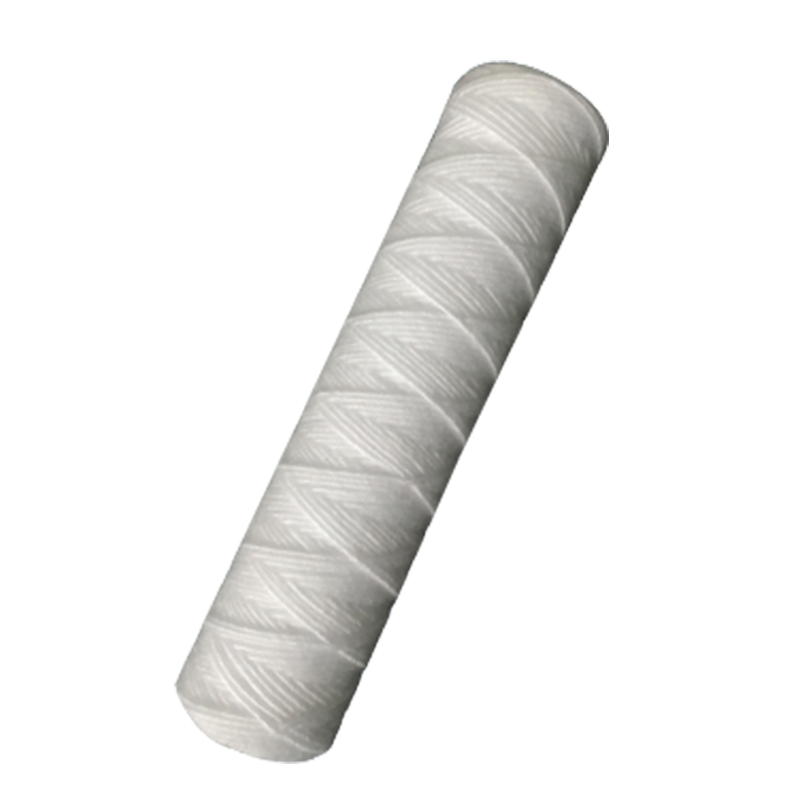

string wound filter cartridge

Ocpuritech-3000lph 18000 Gpd Industrial whole house reverse osmosis water filter-19

UV sterilizer

Ocpuritech-3000lph 18000 Gpd Industrial whole house reverse osmosis water filter-20

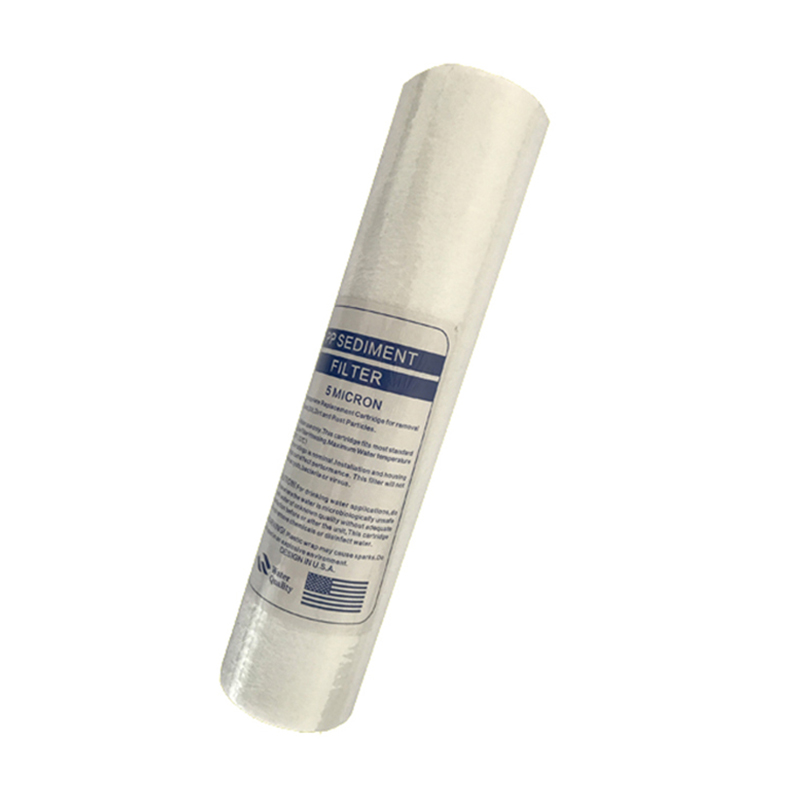

PP filter cartridge

Consumable list and replace time

S/N	Name	Material	Service life
1	Automatic sand filter	Quartz sand	2-3years
2	activate carbon filter	Activated carbon	1year
3	precision filter	PP,CTO	3-6 months
4	RO membrane	Vontron/Dow/CSM etc;	2-3years

Application

Ocpuritech-3000lph 18000 Gpd Industrial whole house reverse osmosis water filter-21

Water treatmetn for seawater

Seawater desalination is the main issue for the people who live in the coastal cities & island, such as the water naval ships garrison prominent problem, In order to comply with state life drinking water standard, need to find a system to purify it. These systems should be adapted proven technology to give reliable performance and meet the demanding requirements of the marine environment.

Product packaging

Ocpuritech-3000lph 18000 Gpd Industrial whole house reverse osmosis water filter-22

CE certificate

CE certificate is a certification mark that indicates conformity with health, safety, and environmental protection standards for products sold within the European Economic Area (EEA).

The CE marking is also found on products sold outside the EEA, This makes the CE certificate recognizable worldwide even to people who are not familiar with the European Economic Area. It is in that sense similar to the FCC Declaration of Conformity used on certain electronic devices sold in the United States.

Our water treatment system and water treatment accessories all have been certificated by CE and provide 1-year warranty, many clients are very recognized for the quality of our products, we are your trusted partners, contact us now！

Ocpuritech-3000lph 18000 Gpd Industrial whole house reverse osmosis water filter-24

Company Features
1. Ocpuritech integrates osmosis system and reverse osmosis drinking water system to promote and be applied into many industries.
2. Ocpuritech spares no effort into the production of reverse osmosis plant .
3. Guangzhou Aomi Water Purification System Manufacture Co., Ltd. adheres to the service theory of mobile water treatment plant . Get more info!
