6000lph Industrial Uf Water Filter Ultrafiltration Water Treatment Machine...

Related Products

750LPH Industrial ultrafiltration machine for mineral water production/mineral water machine

2018 New type 750LPH ultrafiltration membranes system for ultrafiltration equipment

Low cost ultrafiltration 750lph UF RO waste water treatment plant for industrial wastewater plant

750LPH Water Treatment Purification Equipment Plant Ultrafiltration System

Product Information
Customer Reviews

Control Type: EM222 Digital Extension Module MPT tada connect wire Extension Module connect wire

Desalting rate: OEM

Security Filter: 14DAYS

Membrane: China，Guangdong，Guangzhou

Product Description

Introduction
This manual includes the operating instructions and recommended maintenance practices for safe and effective use of an Ultrafiltration (UF) system capable of producing 2000lph of filtered water.
The system is completely self-contained and includes equipment required for unattended automatic operation.
It is recommended that the user read this entire manual and closely study the equipment, instrumentation, and controls before operating the UF system.
Technologies Utilized
Ultrafiltration -- An ultrafiltration (UF) system uses hydrophilic capillary membranes to separate a high percentage of suspended and dissolved molecules. Only certain types of molecules, like water, can pass through the membrane. Other larger molecules, like organic compounds, proteins, oils and suspended solids di not pass through the membrane and left behind. The membrane is made of thin “hollow-fibers” with an inside diameter of between 0.8 and 2.0 mm with microscopic pores that let water pass through while acting as a barrier to stop dissolved and suspended particles.

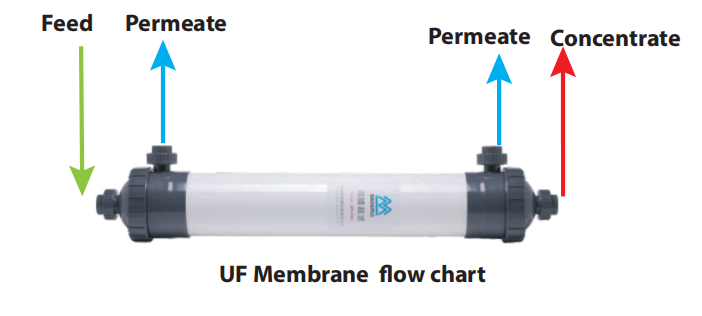

The UF membrane used on the system are an “inside-out” configuration. The UF membrane can be “backwashed” by pumping filtered water in opposite direction of the feed flow through the outside of the fiber. The efficiency of the backwash can be enhanced by adding chemicals (such as acid or hypochlorite) into the backwash water.

The system is designed to operate in conjunction with the UF Filtrate Tank and tap water outlet.

Raw water pump	BW8-30/1.5kw
PP Filter CartridgePrecision Filter	40”-50uPP
Pressure gauge	20”-5u
UF Membrane	UFf200B
Air compressor	220v/50HZ/CN
Ajustment Valve	DN25
Pressure Vessel	3672

product-Ocpuritech-6000LPH Industrial uf water filter ultrafiltration water treatment machine revers

product-6000LPH Industrial uf water filter ultrafiltration water treatment machine reverse osmosis-O

product-Ocpuritech-6000LPH Industrial uf water filter ultrafiltration water treatment machine revers-1

Start-Up & Operation Sequence
1.Connect the feed water inlet, product water output, waste water output
2.Install the security filter and UV lamps, dosing system. Check to make all the valve in right status
3.Connect the power and turn on “power switch” (Emergency stop)
4.Note: Turn on raw water pump 1# in manual status
5.Firstly, set the sand filter, manganese filter, carbon filter and softener to backwash and rinse status. Make sure the waste not entry into the UF membranes. Both filter begin to run. Continue running until the discharge water is clean! They will go to the normal filter status.
6.Turn on the inlet valve, rinse drain valve in manual status. Make sure it runs for 2 mins so that clean UF membranes.
7.When the above steps finished, turn on the all valves and pumps in auto status.
8.The system will running automatically.
9.You can set the running parameters of valves and pump through Touch screen on basis of real requirements.
10.Press the reset bottom, the UF will stop with setting stop procedures

Maintenance
1.Filter cartridges, UF membranes replacing:
(1)PP Filter cartridge’s service life mainly depends on raw water quality, but normally they can service for 3 months if the raw water if from tap.
(2)UF membranes normally can service for 3-4 years. If you found the output rate is decreasing or after chemical cleaning, the product still bad, please replace them.
(3)When the machine running, make sure the tanks of the dosing systems have enough liquor.

Customer Comment

product-6000LPH Industrial uf water filter ultrafiltration water treatment machine reverse osmosis-O-1

product-Ocpuritech-6000LPH Industrial uf water filter ultrafiltration water treatment machine revers-2

Certifications

Product packaging

Packaging: Wooden Case, Carton Box or Export  Neutral Packing
Shipping: We will choose the fastest with the cheapest shipping mode for you by air, sea or courier.

product-6000LPH Industrial uf water filter ultrafiltration water treatment machine reverse osmosis-O-2

Why Choose Us

We have professional QC team to check the equipment' s quality before delivery. And we could provide the free technical training.
Provide complete OEM or ODM water treatment solution based on your source water

Provide free technical training and full good after service.

We have the professional QC team to check the quality before delivery.

The durable High-impact carton to protect the products.

Reply in 24 hours.

Lead time for water filter cartridge is 5-7 working days
 Lead time for the water treatment system is 7-15 working days

Company Profile

product-Ocpuritech-6000LPH Industrial uf water filter ultrafiltration water treatment machine revers-3

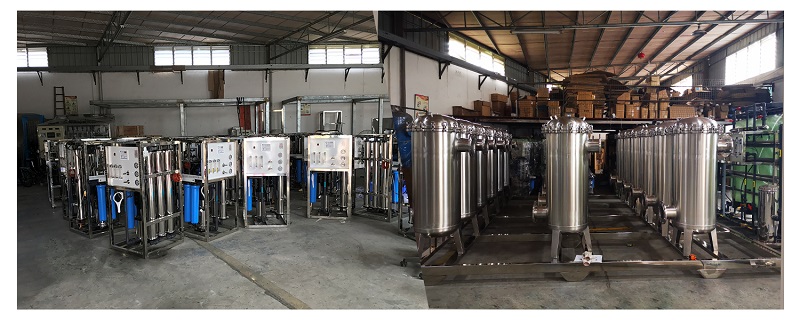

 Ocpuritech - Guangzhou Aomi Water Purification System Manufacture Co., Ltd. The company was founded in 2008, with 12 years' technical experience. Ocpuritech is divided into Large Size Equipment Factory and Cartridge Factory. Equipment Factory located at Panyu Guangzhou, Filter Cartridge Factory located at Jiangmen Guangdong.

Ocpuritech is a leading manufacturer of Reverse Osmosis system, Ultrafiltration system, Seawater Desalination deionized watersystem in China.

The companies grew over 1000 square meters in the ensuing 12 years. It has been trusted and praised by more than 30 countries.Our main market are South Africa, Peru, Chile, Colombia, Ecuador, Mexico, etc.

We had sold over 6000 sets equipment. With a professional foreign trade team, sales turnover has been increased more than 60% last year, supplying over 100+ big projects for different countries.
