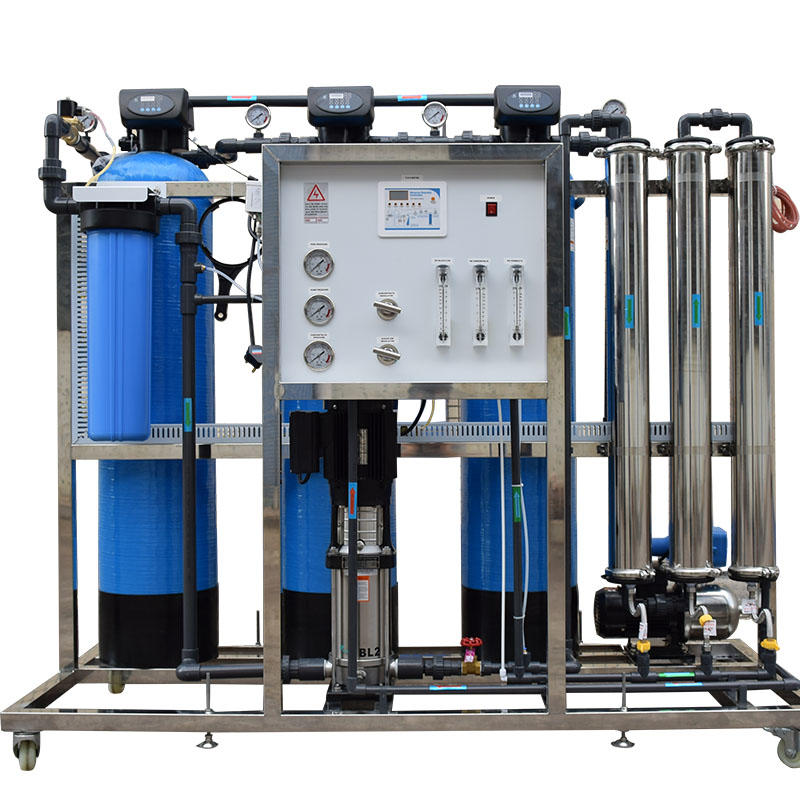

RO membrane water purifier is engineered to meet the varying needs of a wide range of industrial, municipal, commercial and drinking water applications. Our advanced manufacturing technologies ensure that RO membrane water purifier always delivers good performance and productivity as well as the highest quality and consistency available.
A reverse osmosis manufacturer that has always prided itself on using top of the line components from Vontron, Dow, Hydranautics, Toray and many more.It is highly effective for removing around 99 percent contaminants from feed water. Thus, you can eliminate various elements such as ions, bacteria, lead, chlorine, fluoride, arsenic, etc from your drinking water.

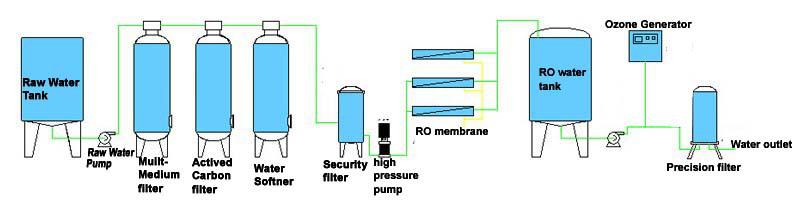

Item | Function |
Raw water pump | provide the pressure to quartz sand filter/active carbon filter |
Automatic sand filter | Get rid of turbidity, suspended matter, organic matter, colloid, ect |
Activate carbon filter | Remove the color, free chloride, organic matter, harmful matter, ect. |
Softener | Exchange "ions" of calcium and magnesium with the most common and easiest method |
Precision filter | Prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um |
High pressure pump | Provide the high pressure to RO membrane |
RO system | main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions |
kill bacteria |
Capacity | 750LPH/4500GPD |
Voltage | 220V/50Hz,220V/60Hz,Single phase |
Recovery | 45%-50% |
Desalination | 96%-99% |
Desalination | 96%-99% |
Membrane Qty | 3pcs |
Temp of raw water | 1-45℃ |
Feed Water Pressure | 1-5 bar |
Raw water TDS | 0-1000ppm |
Application raw water | Tap water, city water, ground water,well water |
Raw water pump | CNP,Shimge |
RO Membrane | Vontron,Dow |
Item name | Material |
Raw water pump | SS304 |
The pipe of raw water pump | PVC |
FRP | |
up and down water distributor | ABS |
Pressure gauge | assembly |
Engineering plastics | |
Brine Tank | PE |
HP PUMP | SS304 |
RO Membrane | Aromatic polyamide |
Pure Flow meter | Plexiglas Panel |
waste Flow meter | Plexiglas Panel |
Conductivity meter | engineering plastics |
Pressure switch | brass |
inlet valve | brass |
flush valve | brass |
Regulating valve | brass |
UV sterilizer | SS304 |
Electronic control system | Air switch.electric relay.contractor.switch.LED |
control box | SS304 /Mild Steel |
Frame | SUS304 |
pipeline | UPVC 3/4'' |
NCP raw water pump and high pressure pump, stainless steel good quality and long lasting
Automatic valves, easy to control, efficient
Sand filter+Activated carbon filter+Water softener:removal out all Types Of Contaminants and Odor off the water
Good brand Vontron Membrane with high quality SS membrane housing can keep lasting 2-3 years,remove 90 to 99.99% of the dissolved impurities that reside in your water
Flow meter ,Pressure gauge,Pressure switch, Conductivity meter, easy to handle
FRP tank
Distributor
Multiport Valve
Membrane
high pressure pump
Membrane Housing
S/N | Name | Material | Service life |
1 | Automatic sand filter | Quartz sand | 2-3years |
2 | activate carbon filter | Activated carbon | 1year |
3 | softener | resin | 1year |
4 | precision filterr | PP,CTO | 3-6 months |
5 | RO membrane | Vontron/Dow/CSM etc; | 2-3 years |
Using reverse osmosis RO membrane water purifier targeted high-purity water treatment processes have been specifically designed to meet the water requirements for the preparation of purified water from pharmaceutical companies and hospitals and the preparation of large infusions.
CE certificate is a certification mark that indicates conformity with health, safety, and environmental protection standards for products sold within the European Economic Area (EEA).
The CE marking is also found on products sold outside the EEA, This makes the CE certificate recognizable worldwide even to people who are not familiar with the European Economic Area. It is in that sense similar to the FCC Declaration of Conformity used on certain electronic devices sold in the United States.
Our water treatment system and water treatment accessories all have been certificated by CE and provide 1-year warranty, many clients are very recognized for the quality of our products, we are your trusted partners, contact us now！
