The 500lph EDI electrical deionized water treatment system

Product Information
Customer Reviews

Application Scope

Aomi's reverse osmosis system can be used in a variety of situations.Aomi always gives priority to customers and services. With a great focus on customers, we strive to meet their needs and provide optimal solutions.With a focus on production management, Aomi keeps introducing advanced production technology to improve product quality. We guarantee that every indicator of the machinery meets both the national and the industry standards.

Company Advantages
1. Ocpuritech electrodeionization , with comprehensive functionality and high performance, is developed by top-class R&D team. The team has spent a lot time developing the new function of this product. Ocpuritech water treatment machines can guarantee the health and hygiene of the water
2. The product is tested to be 100% qualified under the strict supervision of our quality experts. Water Treatment System can be very easy to maintain
3. Installation service of is electrodeionization available in Ocpuritech. Water treatment system can be applied into a wide variety of places, like laboratory, hospital,etc

EDI Stack Inlet Requirements

Capacity	300lph-50000lph
Control type	Micro controller/PLC ( touch screen option）
Recovery rate	≥90%
Total exchange anions (mg/L,as CaCO3)	≤35
Total hardness (mg/L,as CaCO3)	≤1
TOC(mg/L)	≤0.5
Residual chlorine(mg/L)	≤0.02
Oxidizing agent	0
Silicon dioxide(mg/L)	≤0.5
SDI15	＜1
PH	7-9
TMP(℃)	5-35
Variable valency metal(mg/L)	Fe≤0.01 Mn≤0.01
Pressure(bar)	≤4

product Introduction

Ocpuritech-High-quality Electrical edi water system manufacturers

EDI,CEDI(Electro-deionization) is a process that uses ion exchange resins to absorb ions from a dilute water stream and then transports the absorbed ions through ion-exchange membranes into a concentrate water stream under the influence of an applied electro field. In the process，ion exchange resins do not need to be regenerated via acid or alkali. This new technology could replace traditional Electrode ionization (DI) equipment, produces ultrapure water whose resistance can reach 18 MΩ·cm Based on your raw water quality and produced water requirements ,it can all be fully customized and designed by our professional engineers to meet your business requirements.

Ocpuritech-High-quality Electrical edi water system manufacturers-1

EDI Stack Structure

Ocpuritech-High-quality Electrical edi water system manufacturers-2

EDI System Flow Chart

Typical Applications

product details

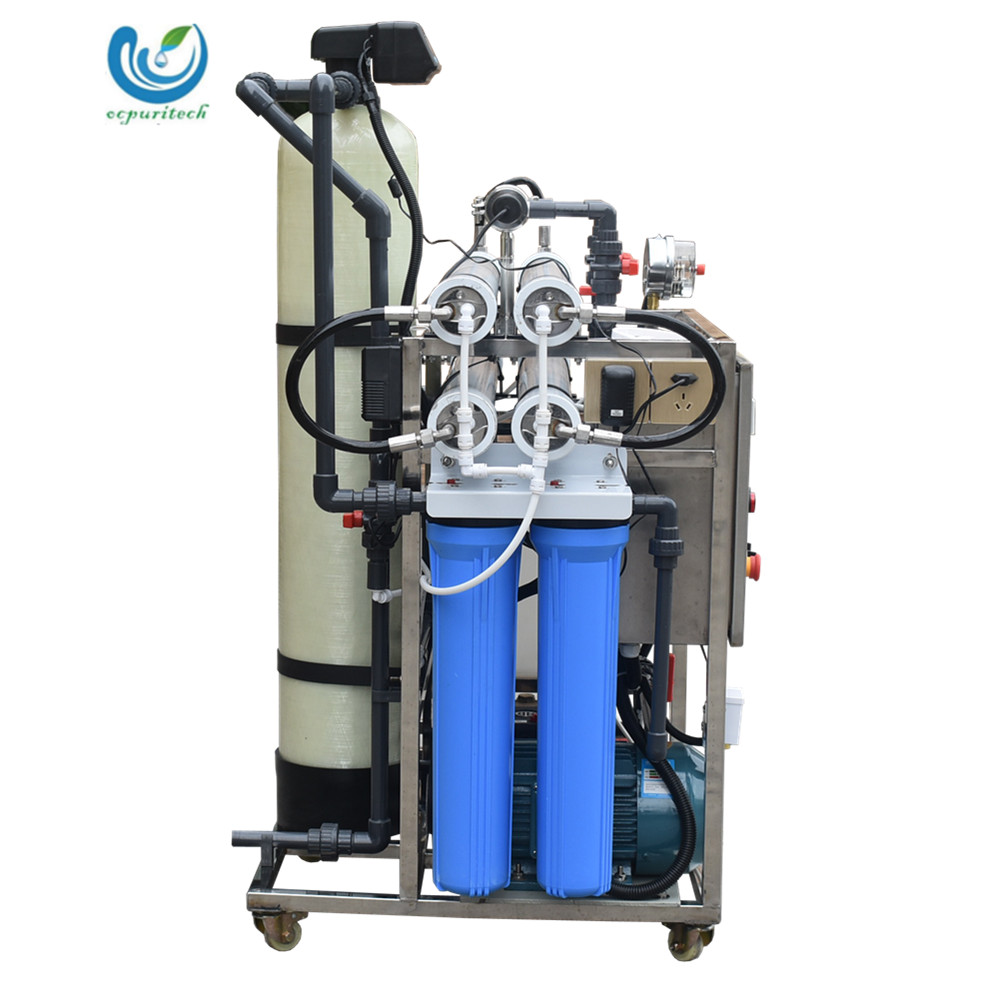

Front view

Ocpuritech-High-quality Electrical edi water system manufacturers-3

Back view

Ocpuritech-High-quality Electrical edi water system manufacturers-4

Slide side

Ocpuritech-High-quality Electrical edi water system manufacturers-5

Features

Ocpuritech-High-quality Electrical edi water system manufacturers-6

A mixed bed ion exchange unit has to be regenerated by using acid and alkali, but an EDI system does not need to be involved in such a process. This is the fundamental advantage of EDI technology over the conventional ion exchange technology. Furthermore, this advantage can be expressed into other aspects as listed below. 1.EDI process does not consume regeneration chemicals. 2.EDI process does not create waste water and is much more environmental-friendly.   3.EDI systems do not require shutdown for regeneration.   4.EDI systems are smaller than mix bed ion exchange units.   5.EDI process provides water with consistent quality.   6.Operating expenses are lower than that of ion exchange units.  

Applications

Ocpuritech-High-quality Electrical edi water system manufacturers-7

Pharmaceutical and bio-medical industries   Steam Generation / Boiler Feed /Microelectronics / Semiconductor /makeup use water Surface finishing /Chemical manufacturing

Desalination equipment is a special water treatment equipment that removes salt, various impurities and salt in water and is widely used in various industrial industries. EDI ultra-pure water technology has advanced technology, simple operation, and no pollution. It is a clean production technology and has been widely used in the fields of microelectronics, power industry, pharmaceutical industry, chemical industry and laboratory.

CE certificate

CE certificate is a certification mark that indicates conformity with health, safety, and environmental protection standards for products sold within the European Economic Area (EEA).

The CE marking is also found on products sold outside the EEA, This makes the CE certificate recognizable worldwide even to people who are not familiar with the European Economic Area. It is in that sense similar to the FCC Declaration of Conformity used on certain electronic devices sold in the United States.

Our water treatment system and water treatment accessories all have been certificated by CE and provide 1-year warranty, many clients are very recognized for the quality of our products, we are your trusted partners, contact us now！

Ocpuritech-High-quality Electrical edi water system manufacturers-9

Company Features
1. Guangzhou Aomi Water Purification System Manufacture Co., Ltd. is a company which specializes in manufacturing electrodeionization .
2. In order to achieve high quality, Guangzhou Aomi Water Purification System Manufacture Co., Ltd. introduces edi water treatment technology.
3. Establishing the concept of edi water treatment system will do a great help to the development of Ocpuritech. Please contact us!
