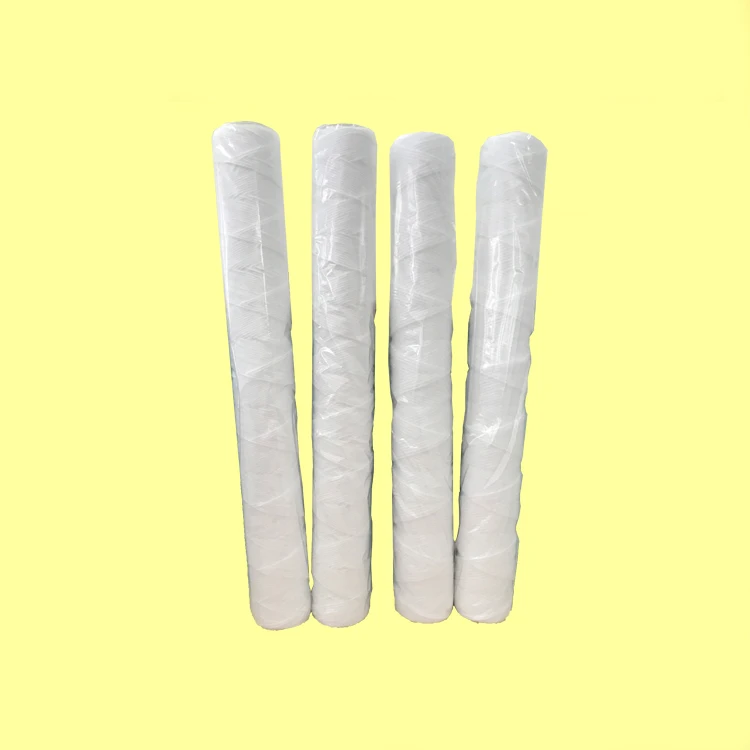

High Quality Pp Wire 20 inch 10 micron Wound Filter Cartridge / domestic string wound filter cartridge
Filter cartridge is new type filter element,small size, large filter area,high precision,No pollution, easy installation and replaced. Using of the micro porous membrane filtration, so the adsorption is small, therefore not stranded filtrate, and wide chemical compatibility, has broad applicability. Filter connector using International universal form: this cover with 226, 222, flat three forms; ports with triangle fin and flat head two forms.
String wound cartridge filter
String wound cartridge filter is deep layer filter element, and it main used in the quality of low viscosity and impurity filtering. It is made of textile fiber line(polypropylene line, absorbent cotton line), according to the specific process of precision winding in the porous frame(polypropylene or stainless steel). With dense inside and sparse outside cellular structure, so it can remove suspended solid, particle and rust etc. in the fluid. In addiction, it has very good filter characteristics.
Main technical performance indicators
2.filter cartridge OD:φ60mm,φ65mm;
3.filter cartridge ID:φ28mm,φ30mm;
4.Filter cartridge of polypropylene can use water, acid ,alkali etc.and chemical solution and other non organic solution, and its operating temperature≤60℃;
5.Absorbent cotton fiber filter center pole is stainless steel materials , using in
organic solvent,water, oil,alkaline solution,drink and medicine etc., with operating temperature120℃;
filter cartridge length: 10″,20″,30″,40″;
7.Max anti-pressure:≤0.5MPa;Max drop of pressure:0.2MPa;
8.Max working temperature:Polypropylene line :Polypropylene frame≤60℃;
Stainless steel frame≤80℃. Absorbent cotton line:Stainless steel frame≤120℃.
High filtering precision,large flow rate,low differential pressure, high pressure strength,carrying large amount dirt,non-poisonous and tasteless and no secondary pollution.
Water filter: such as medium and big size of ultrapure water system and beverage industry water use’s pre-treatment;
2.Food industry filter:such as cooking and vegetable oil’s filtering, syrup,chocolate
and other kinds of slurry’s filtering;
3.Chemical industrial filter:such as the filter of plating solution liquid,oil paint,oil plants,coating mechanical oil,cutting oil,heavy oil,fuel oil, high viscosity resin,grease and pharmacy etc.
Good string wound cartridge filter can show the depth of filter material’s effect.And the ideal condition is wrapped more and more dense from inside to outside. Thus, it controls the density of filter material with the thickness of line or different winding tension. Only with dense inside and sparse outside structure’s string wound filter cartridge can effectively enhance the filtration efficiency and intercept more impurity particles. Wound type filter material of filtering precision is determined by the wire thickness and the wrapping density, the more thin wire material,and more closely together, so the pore will be more smaller and higher precision. In the same way, wire material more compact, the filtration precision will be higher. However, we need to maintenance its structure and pore size, so that providing a stable and uniform quality of filter.
10'' 50PCS/CTN 510*310*310mm
20'' 50PCS/CTN 510*310*310mm
30'' 25PCS/CTN 765*310*310mm
40'' 25PCS/CTN 1020*310*310mm
Our water treatment system have been certificated by CE and provide 1-year warranty, many clients are very recognized for the quality of our products, we are your trusted partners.
1.Provide complete OEM or ODM water treatment solution based on your source water
2.Provide free technical training and full good after service.
3.We have professional QC team to check the quality before delivery
4.Strong carton to protect the products
3.Reply in 24 hours.
5.Lead time for water filter cartridge is 5-7 working days
Lead time for water treatment system is 7-15 working days
1.Do you have water analysis report ?
The report can appear your water quality by TDS ,or some metal element content.
2.what is your application of the output water ?
Like direct drinking, industrial use or bottled water.
3.What is the minimum quantity ?
1set/pcs ,If with large quantity ,there will be a special discount or wholesale price.
4.Are you manufacturer or trading company?
We are the Top professional manufacturer in China, more than10 years experience in the water treatment.
5. Does your machine have any certificate?
Yes, all of our machine has CE certificate.
6.How long the warranty will be?
1 year warranty for the machine.
