1. Owing to its elegant look and sturdy design, these sets are highly in demand amongst our customers.
2. Guangzhou Aomi Water Purification System Manufacture Co., Ltd. works hard to make the quality and performance of ro machine products more in line with the needs of customers. Ocpuritech ensures to offer you high-quality products at an affordable price
3. Features like ro water filter say that reverse osmosis water filter has a good competition capacity and a good development prospect. Water treatment system can be applied into a wide variety of places, like laboratory, hospital,etc
4. Ocpuritech ro system are easy to undo and clean; it takes only a few seconds, which makes the process very simple and intuitive. Processed by precise spare parts, Ocpuritech machine enjoys very low failure rate.

Ocpuritech-Professional 6000lph 36000 Gpd Industrial Reverse Osmosis Ro Membrane Water

product description

the semi-permeable membrane for reverse osmosis applications consists of a thin film of polymeric material a fraction of a millimetre thick cast on a fabric support. Commercial grade membranes have high water permeability and a high degree of semi-permeability.

Ocpuritech-Professional 6000lph 36000 Gpd Industrial Reverse Osmosis Ro Membrane Water-1

product advantages

1 Low design cost and short lead time
2. High-end specification with durability
3.The use of the most advanced RO membrane

Ocpuritech-Professional 6000lph 36000 Gpd Industrial Reverse Osmosis Ro Membrane Water-2

Flow Chart

Raw water pump --sand filter--manganese filter --carbon filter --softener --precision filter--High pressure pump-- RO system-- UV sterilizer

Function

Item	Function
Raw water pump	provide the pressure to quartz sand filter/active carbon filter
sand filter	get rid of turbidity, suspended matter, organic matter, colloid, ect.
manganese filter	Remove Iron and manganese
activate carbon filter	Remove the color, free chloride, organic matter, harmful matter, ect.
softener	exchange "ions" of calcium and magnesium with the most common and easiest method
precision filter	prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um
High pressure pump	Provide the high pressure to RO membrane
RO system	main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions
UV sterilizer	kill bacteria

Description

Capacity	6000LPH/36000GPD
Voltage	220V/50Hz,220V/60Hz,Single phase
Recovery	50%-70%
Desalination	96%-99%
Membrane Qty	3pcs
Temp of raw water	1-45℃
Feed Water Pressure	1-5 bar
Raw water TDS	0-1000ppm
Application raw water	Tap water,Brackish water,Sea water
Raw water pump:	CNP,Shimge
RO Membrane	Vontron,Dow

Item name	Material
Raw water pump	SS304
The pipe of raw water pump	PVC
FRP Tank	FRP
up and down water distributor	ABS
Pressure gauge	assembly
control valve	Engineering plastics
HP PUMP	SS304
RO Membrane housing	FRP

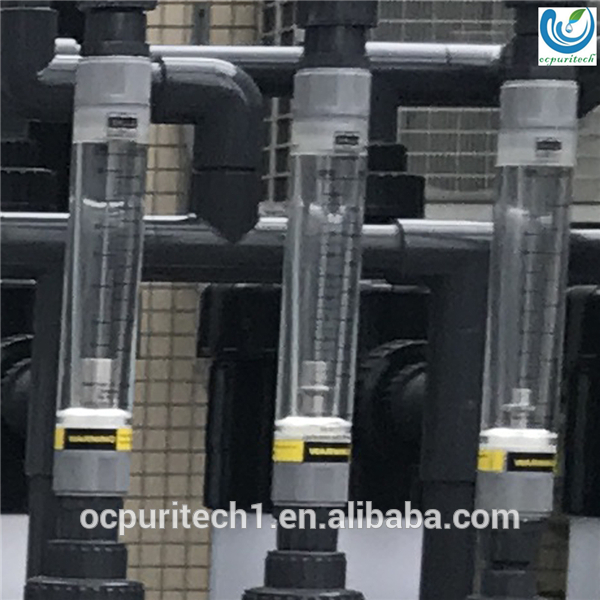

Pure Flow meter	Plexiglas Panel
waste Flow meter	Plexiglas Panel
Conductivity meter	engineering plastics
Pressure switch	brass
inlet valve	brass
flush valve	brass
Regulating valve	brass
UV sterilizer	SS304
Electronic control system	air switch.electric relay.contractor.switch.LED
control box	SS304 /Mild Steel
Frame	SUS304
pipeline	UPVC 3/4''

product details

Front view

NCP raw water pump and high pressure pump, stainless steel good quality and long lasting

Back view

Good brand Vontron Membrane with high quality FRP membrane housing can keep lasting 2-3 years,remove 90 to 99.99% of the dissolved impurities that reside in your water

Electronic control system：air switch.electric relay.alternating current contractor.switch.LED

Precision filter:add filter cartridge to protect membrane and extend membrane service life

purchase related accessories

FRP tank

Ocpuritech-Professional 6000lph 36000 Gpd Industrial Reverse Osmosis Ro Membrane Water-3

Distributor

Ocpuritech-Professional 6000lph 36000 Gpd Industrial Reverse Osmosis Ro Membrane Water-4

Multiport Valve

Membrane

high pressure pump

Ocpuritech-Professional 6000lph 36000 Gpd Industrial Reverse Osmosis Ro Membrane Water-7

Membrane Housing

Ocpuritech-Professional 6000lph 36000 Gpd Industrial Reverse Osmosis Ro Membrane Water-8

CTO filter cartridge

Ocpuritech-Professional 6000lph 36000 Gpd Industrial Reverse Osmosis Ro Membrane Water-9

string wound filter cartridge

Ocpuritech-Professional 6000lph 36000 Gpd Industrial Reverse Osmosis Ro Membrane Water-10

UV sterilizer

Ocpuritech-Professional 6000lph 36000 Gpd Industrial Reverse Osmosis Ro Membrane Water-11

PP filter cartridge

Consumable list and replace time

S/N	Name	Material	Service life
1	sand filter	Quartz sand	2-3years
2	manganese filter	manganese	2-3years
3	activate carbon filter	Activated carbon	1year
4	softener	resin	1year
5	precision filter	PP,CTO	3-6 months
6	RO membrane	Vontron/Dow/CSM etc;	2-3years

Application

Ocpuritech-Professional 6000lph 36000 Gpd Industrial Reverse Osmosis Ro Membrane Water-12

Cosmetics

Product packaging

Ocpuritech-Professional 6000lph 36000 Gpd Industrial Reverse Osmosis Ro Membrane Water-13

CE certificate

Ocpuritech-Professional 6000lph 36000 Gpd Industrial Reverse Osmosis Ro Membrane Water-15
