Home  > Filter Cartridge  >  Pentek/pentair Polypropylene (pp) String Wound Filter Cartridge, High Quality Pentek String Wound Filter Cartridge
Pentek/pentair Polypropylene (pp) String Wound Filter Cartridge, High Quality Pentek String Wound Filter Cartridge

Pentek/pentair Polypropylene (pp) String Wound Filter Cartridge, High Quality Pentek String Wound Filter Cartridge

Overview
Quick Details
Place of Origin:
China
Brand Name:
Ocpuritech
Model Number:
KX-1
After-sales Service Provided:
none
Warranty:
none
Certification:
ce, CE NSF
Use:
Household Pre-Filtration
Application:
Commercial, HOUSEHOLD, Drinking Water
Power Source:
manual
Product name:
filter cartridges
Function:
primary filter
Material:
PP woven PP yarm
Name:
pentair Polypropylene (pp) String Wound Filter Wound Filter Cartridge
Type:
Household Water Filter
Color:
White
Usage:
Fine filtration for variety of gas
Application of the industry:
Electronis chemical products and

Pentek/pentair Polypropylene (pp) String Wound Filter Cartridge, High Quality Pentek String Wound Filter Cartridge

Filter cartridge

Filter cartridge is new type filter element,small size, large filter area,high precision,No pollution, easy installation and replaced. Using of the micro porous membrane filtration, so the adsorption is small, therefore not stranded filtrate, and wide chemical compatibility, has broad applicability.  Filter connector using International universal form:   this cover with 226, 222, flat three forms; ports with triangle fin and flat head two forms.

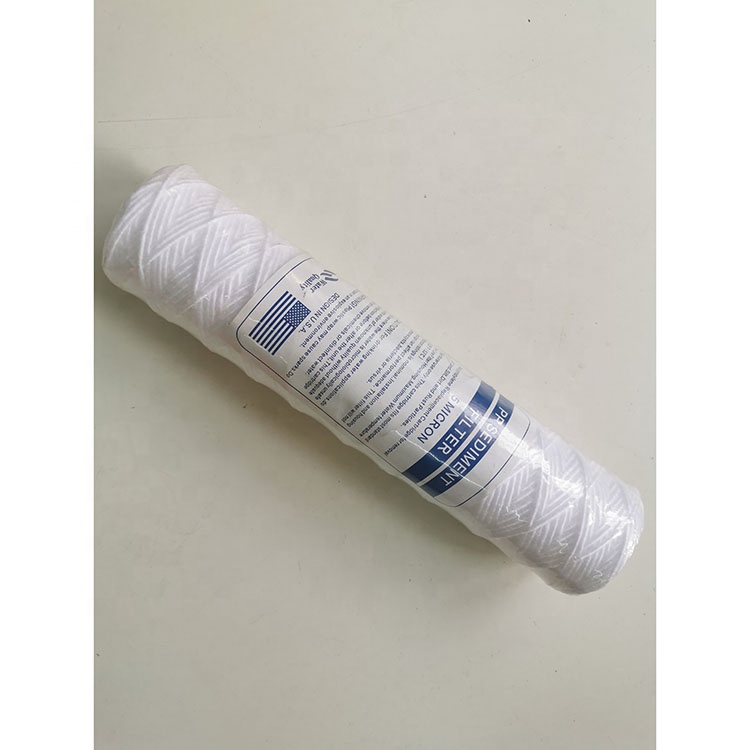

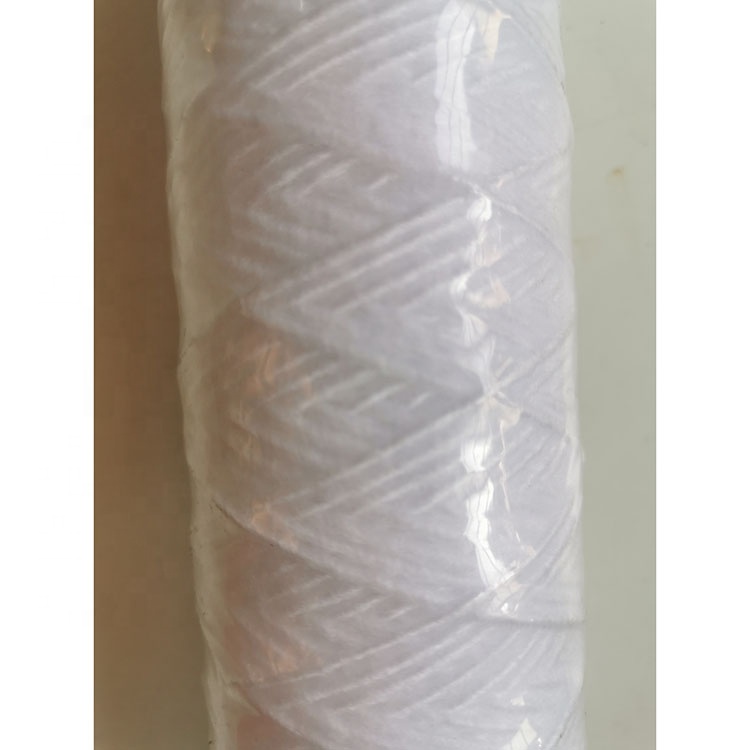

String wound cartridge filter



String wound cartridge filter is deep layer filter element, and it main used in the quality of low viscosity and impurity filtering. It is made of textile fiber line(polypropylene line, absorbent cotton line), according to the specific process of precision winding in the porous frame(polypropylene or stainless steel). With dense inside and sparse outside cellular structure, so it can remove suspended solid, particle and rust etc. in the fluid. In addiction, it has very good filter characteristics.

 Pp/ss Core 10 Micron Pp String Wound Water Filter Cartridge, High Quality Alkaline Filter Cartridge,10 Micron Filter







Main technical performance indicators





1.filtering precision:1μm,5μm,10μm,20μm,30μm,50μm,75μm,100μm;

2.filter cartridge OD:φ60mm,φ65mm;

3.filter cartridge ID:φ28mm,φ30mm;

4.Filter cartridge of polypropylene can use water, acid ,alkali etc.and chemical solution and other non organic solution, and its operating temperature≤60;

5.Absorbent cotton fiber filter center pole is stainless steel materials , using in

organic solvent,water, oil,alkaline solution,drink and medicine etc., with operating temperature120;

filter cartridge length: 10″,20″,30″,40″;

7.Max anti-pressure:≤0.5MPa;Max drop of pressure:0.2MPa;

8.Max working temperature:Polypropylene line :Polypropylene frame≤60;

Stainless steel frame≤80. Absorbent cotton line:Stainless steel frame≤120.





Feature

High filtering precision,large flow rate,low differential pressure, high pressure strength,carrying large amount dirt,non-poisonous and tasteless and no secondary pollution.



Application

Pentek/pentair Polypropylene (pp) String Wound Filter Cartridge, High Quality Pentek String Wound Filter Cartridge

Water filter: such as medium and big size of ultrapure water system and beverage industry water use’s pre-treatment;

2.Food industry filter:such as cooking and vegetable oil’s filtering, syrup,chocolate

and other kinds of slurry’s filtering;

3.Chemical industrial filter:such as the filter of plating solution liquid,oil paint,oil plants,coating mechanical oil,cutting oil,heavy oil,fuel oil, high viscosity resin,grease and pharmacy etc.







Distinguish

Good string wound cartridge filter can show the depth of filter material’s  effect.And the ideal condition is wrapped more and more dense from inside to outside. Thus, it controls the density of filter material with the thickness of line or different winding tension. Only with dense inside and sparse outside structure’s string wound filter cartridge can effectively enhance the filtration efficiency and intercept more impurity particles. Wound type filter material of filtering precision is determined by the wire thickness and the wrapping density, the more thin wire material,and more closely together, so the pore will be more smaller and higher precision. In the same way, wire material more compact, the filtration precision will be higher. However, we need to maintenance its structure and pore size, so that providing a stable and uniform quality of filter.







Packaging & Shipping



Package

10''  50PCS/CTN   540*350*340mm
20''  25PCS/CTN    540*350*340mm









Company Information

Guangzhou Aomi Water Purification System Manufacture Co., Ltd is specialized in a Water Purifier for household and industrial water treatment. Our main products include RO device, Ultrafiltration, Microfilter, sand, and carbon filter equipment, etc. These products completely set of equipment for school, factory, and hospital. Besides, we are manufacturing tap water and mineral water equipment.


We have been devoted ourselves to Water RO System for many years, and our engineers can make different types of water treatment equipment. We have the expertise to manufacture water treatment equipment of different sizes, capacity, and optional functions. And we also provide relative products such as FRP tank, valves, filter cartridge, and membranes, etc. Under our excellent products and patience service, we have earned a great reputation for our product quality, performance reliability, and business integrity.

product-Ocpuritech-img-3



Our Services

1.Provide complete OEM or ODM water treatment solution based on your source water



2.Provide free technical training and full good after service.



3.We have professional QC team to check the quality before delivery



4.Strong  carton to protect the products



3.Reply in 24 hours.



5.Lead time for water filter cartridge is  5-7 working days

   Lead time for water treatment system is 7-15 working days

FAQ

1.Do you have water analysis report ?

The report can appear your water quality by TDS ,or some metal element content.



2.what is your application of the output water ?

Like direct drinking, industrial use or bottled water.



3.What is the minimum quantity ?
 1set/pcs ,If with large quantity ,there will be a special discount or wholesale price.



4.Are you manufacturer or trading company?
 We are the Top professional manufacturer in China, more than10 years experience in the water treatment.



5. Does your machine have any certificate?

Yes, all of our machine has CE certificate.



6.How long the warranty will be?

1 year warranty for the machine.
