Products Description

This industrial reverse osmosis system is designed for our Irish customers. We made it in the form of separate RO machine and Pretreatment. Here we can see that we have three pretreatment parts, one RO main machine and one dosing tank. Combined together, this equipment can provide purified water effectively.

product-Ocpuritech-Price of 5000L reverse osmosis water filtration system industrial water treatment

Model
SRO-5T-A3
RO Membrane
LP21-8040
Membrane housing
8040 300psi/450psi
Flow meter
10T/8T
Conductivity meter
korida CCT-3320V
RO controller
Korida ROC-2015
Pressure gauge
1Mpa/2.5Mpa
Pressure switch
30bar&6bar
inlet valve
Solenoid valve 2 inch
Frame
SUS304

product-Price of 5000L reverse osmosis water filtration system industrial water treatment plant fact

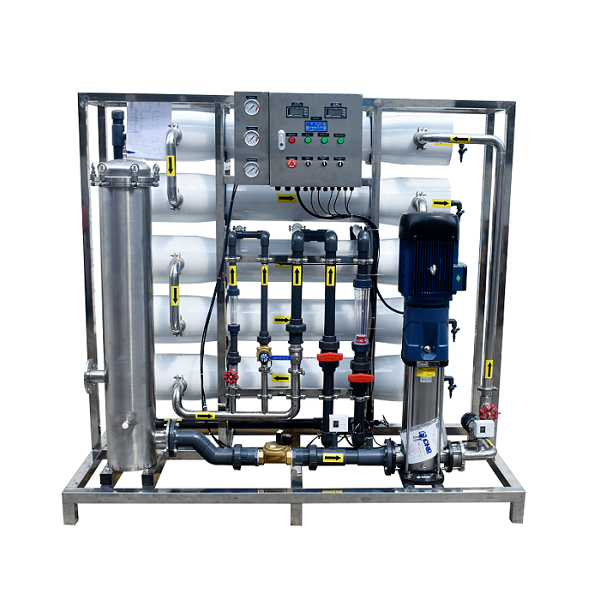

There are five FRP vessels fixed at the back of the RO main machine, housing 8040 reverse osmosis membrane inside.This is the most important part if the whole RO system, the function of membrane is to separate and remove dissolved solids,organic,pyrogens,submicron colloidal matter,color,nitrate and bacteria from water.

This is the display of our whole set of machines, mainly including the main machine just mentioned, pretreatment and a dosing box. Among them, pretreatment includes Sand filter,Carbon filter,Softener.

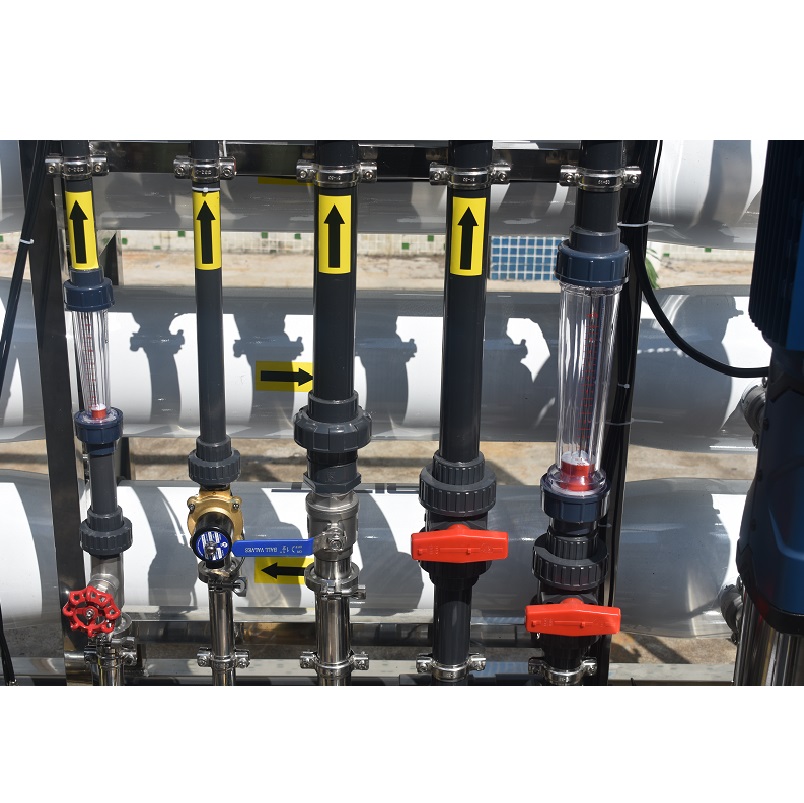

This is Flow meter about the machine,it indicate the flow rate of system feed water/waste water/produce water.

This is the precision filter of the machine, which contains 1 or 5 Micron PP filter cartridge to remove sediments and protect the membranes.And the filter cartidge is able to effectively remove rust,sand,suspended particles such as sediments,fiber,rust,dust,organic solvents.

This is the control panel of the machine, which contains RO controller and Pressure Gauges.RO Controller system working;display quality of feed water and produce water.And the pressure gauges is monitoring the system’s operating pressure and pretreatment operating pressures.

Application

1,High quality drinking water for residential quarters Meet the demand for high-quality drinking water in high-grade residential quarters. Support drinking purified water 24 hours a day.

2,Purified water production plant
 It can be equipped with a full-automatic filling machine to form a full-automatic barreled water production line.

3,Raw material water for the food industry
 For example, the mixing of additives, ingredients, soup or juice. The pure water can improve the taste and inhibit the growth of organic matter, and improve the shelf life of products.

4,Water preparation for dairy, beverage and wine industry
 It is suggested to adopt the two-stage reverse osmosis device to prevent poor taste caused by foreign matters in the water.

5,Water for the chemical industry
 It is used in the proportion of chemical raw liquid, chemical product manufacturing, chemical circulating water, etc. Pure water can effectively prevent additional chemical reaction and quality deviation caused by excessive ions in water.

6,Boiler water for the power industry
 It can supply pure water for boiler, coal-fired boilers, the low-pressure boiler power system in Factories and mines. So as to improve production efficiency and prolong the service life of the equipment.

product-Ocpuritech-Price of 5000L reverse osmosis water filtration system industrial water treatment-1

Optional Features

◪ UPVC/SUS304/SUS316 Components
◪ Motorized valve/Solenoid vavle
◪Dosing Tank/CIP Tank
◪ Auto/manual multi-port valve
◪PLC controller/Touch screen
◪High Performance UV sterilizer/Ozone generator

Guangzhou Aomi Water Purification System Manufacture Co., Ltd. was established in 2011 in Panyu District, Guangzhou, China's manufacturing and production center. After 10 years of development, the size of our production plant from the beginning of 200 square meters, expanded to 3500 square meters, the scope of business includes the research , development and sales of industrial reverse osmosis water purification equipment, commercial reverse osmosis water purification equipment, domestic reverse osmosis water purification equipment and all kinds of related accessories.
