750lph 4500 Gpd Industrial Ro Membrane Water Purifier

Product Information
Customer Reviews

Company Advantages
1. We are specialized in offering our clients an excellent array of ro machine.
2. Guangzhou Aomi Water Purification System Manufacture Co., Ltd. is familiar with the sales network in reverse osmosis water filter area. The most advanced RO membrane is adopted in Ocpuritech Water Treatment System
3. Easy operation is one of the features Ocpuritech products enjoy. ro system,ro water filter is praised by our customers for its high performance in functions.
4. Among all kinds of well water filtration system, reverse osmosis water filtration system has widely found its applications in industry because of its fine properties.
5. Ocpuritech’s water system is an economical and convenient choice, Ocpuritech Creates reverse osmosis water system, reverse osmosis filter system And Develops New Markets Constantly By The Support Of Our Experienced R&D Team.

Ocpuritech-750lph 4500 Gpd Industrial Ro Membrane Water Purifier | Reverse Osmosis System

product description

RO membrane water purifier are engineered to meet the varying needs of a wide range of industrial,municipal,commercial and drinking water applications. Our advanced manufacturing technologies ensure that RO membrane always deliver unmatched performance and productivity as well as the highest quality and consistency available

Ocpuritech-750lph 4500 Gpd Industrial Ro Membrane Water Purifier | Reverse Osmosis System-1

product advantages

*Over 10 years of experience in reflected in our quality
*Conservatively engineered for reliable, long term performance
*Removes The Odor Off Of The Water

Ocpuritech-750lph 4500 Gpd Industrial Ro Membrane Water Purifier | Reverse Osmosis System-2

Flow Chart

Raw water pump --Automatic sand filter--activate carbon filter--softener--precision filter--High pressure pump-- RO system-- UV sterilizer

Function

Item	Function
Raw water pump	provide the pressure to quartz sand filter/active carbon filter
Automatic sand filter	Get rid of turbidity, suspended matter, organic matter, colloid, ect
Activate carbon filter	Remove the color, free chloride, organic matter, harmful matter, ect.
Softener	Exchange "ions" of calcium and magnesium with the most common and easiest method
Precision filter	Prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um
High pressure pump	Provide the high pressure to RO membrane
RO system	main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions
UV sterilizer	kill bacteria

Description

Capacity	750LPH/4500GPD
Voltage	220V/50Hz,220V/60Hz,Single phase
Recovery	45%-50%
Desalination	96%-99%
Desalination	96%-99%
Membrane Qty	3pcs
Temp of raw water	1-45℃
Feed Water Pressure	1-5 bar
Raw water TDS	0-1000ppm
Application raw water	Tap water, city water, ground water,well water
Raw water pump	CNP,Shimge
RO Membrane	Vontron,Dow

Item name	Material
Raw water pump	SS304
The pipe of raw water pump	PVC
FRP Tank	FRP
up and down water distributor	ABS
Pressure gauge	assembly
control valve	Engineering plastics
Brine Tank	PE
HP PUMP	SS304
RO Membrane	Aromatic polyamide
Pure Flow meter	Plexiglas Panel
waste Flow meter	Plexiglas Panel
Conductivity meter	engineering plastics
Pressure switch	brass
inlet valve	brass
flush valve	brass
Regulating valve	brass
UV sterilizer	SS304
Electronic control system	Air switch.electric relay.contractor.switch.LED
control box	SS304 /Mild Steel
Frame	SUS304
pipeline	UPVC 3/4''

product details

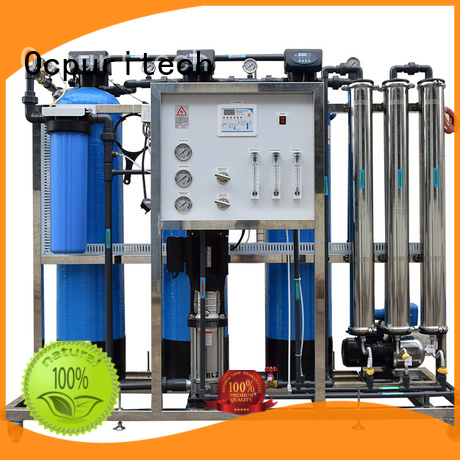

Front view

NCP raw water pump and high pressure pump, stainless steel good quality and long lasting

Back view

Automatic valves, easy to control, efficient

Sand filter+Activated carbon filter+Water softener:removal out all Types Of Contaminants and Odor off the water

Good brand Vontron Membrane with high quality SS membrane housing can keep lasting 2-3 years,remove 90 to 99.99% of the dissolved impurities that reside in your water

Flow meter ,Pressure gauge,Pressure switch, Conductivity meter, easy to handle

purchase related accessories

Ocpuritech-750lph 4500 Gpd Industrial Ro Membrane Water Purifier | Reverse Osmosis System-3

FRP tank

Ocpuritech-750lph 4500 Gpd Industrial Ro Membrane Water Purifier | Reverse Osmosis System-4

Distributor

Ocpuritech-750lph 4500 Gpd Industrial Ro Membrane Water Purifier | Reverse Osmosis System-5

Multiport Valve

Membrane

high pressure pump

Ocpuritech-750lph 4500 Gpd Industrial Ro Membrane Water Purifier | Reverse Osmosis System-8

Membrane Housing

Ocpuritech-750lph 4500 Gpd Industrial Ro Membrane Water Purifier | Reverse Osmosis System-9

CTO filter cartridge

Ocpuritech-750lph 4500 Gpd Industrial Ro Membrane Water Purifier | Reverse Osmosis System-10

string wound filter cartridge

Ocpuritech-750lph 4500 Gpd Industrial Ro Membrane Water Purifier | Reverse Osmosis System-11

UV sterilizer

Ocpuritech-750lph 4500 Gpd Industrial Ro Membrane Water Purifier | Reverse Osmosis System-12

PP filter cartridge

Consumable list and replace time

S/N	Name	Material	Service life
1	Automatic sand filter	Quartz sand	2-3years
2	activate carbon filter	Activated carbon	1year
3	softener	resin	1year
4	precision filterr	PP,CTO	3-6 months
5	RO membrane	Vontron/Dow/CSM etc;	2-3 years

Application

Ocpuritech-750lph 4500 Gpd Industrial Ro Membrane Water Purifier | Reverse Osmosis System-13

1.Microelectronics and semiconductor

2. Pharmaceutical

3.Pilot water systems for studies

Product packaging

Ocpuritech-750lph 4500 Gpd Industrial Ro Membrane Water Purifier | Reverse Osmosis System-14

CE certificate

Ocpuritech-750lph 4500 Gpd Industrial Ro Membrane Water Purifier | Reverse Osmosis System-16
