Sand and Activated Carbon Filter for Drinking Water Purification Plant

Sand and Activated Carbon Filter for Drinking Water Purification Plant

Overview
Quick Details
Applicable Industries:
Hotels
After Warranty Service:
Online support, Field maintenance and repair service
Local Service Location:
south africa
Showroom Location:
south africa
Place of Origin:
Guangdong, China
Warranty:
1 YEAR
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Online support
Condition:
New
Usage:
water filter
Max Operating Pressure:
150 PSI
Operating temperature:
1℃-49℃
Colors:
Natural, Blue, Grey and Black
Type:
Water Filter Parts
Material:
FRP
Application:
Drinking Water
Function:
Producing Fresh Water
Certification:
CE Certificate
Supply Ability
Supply Ability:
4000 Unit/Units per Month sand and activated carbon filter

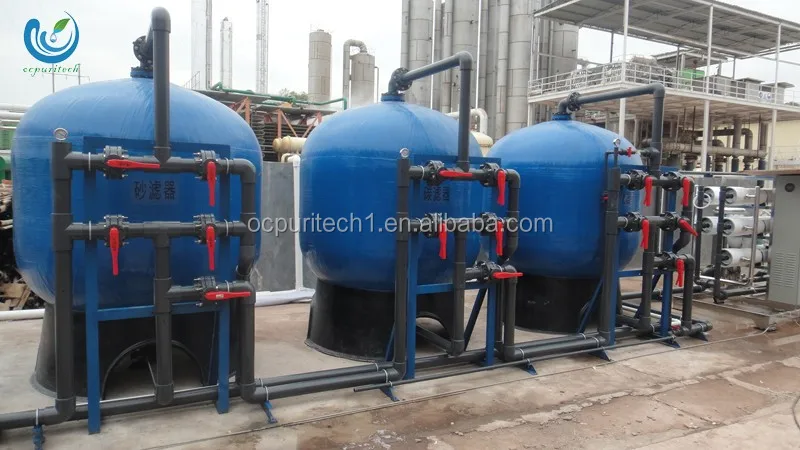

Sand and Activated Carbon Filter for Drinking Water Purification Plant



product-Ocpuritech-Sand and Activated Carbon Filter for Drinking Water Purification Plant-img





Product Introduction

Pretreatment system is a process which uses one or several filter media to purify high turbidity water under pressure. As an important complement to the water treatment plants, it is designed to improve the water quality, especially to guarantee the RO and UF membrane’s service life and finally protect the whole water treatment equipment. The common filter materials are quartz sand, activated carbon,manganese sand and resin.







Sand filter

Sand filter is mainly used to remove the water suspended particles, organic matter, microorganisms, colloidal particles, chlorine and some heavy metal ions. It will reduce the turbidity of raw water. For example,while the raw water is less than 20 degrees,the turbidity of water will up to 3 degrees.



Activated Carbon Filter

Activated Carbon filter is mainly used to absorb odor, organic matter, colloid,residual chlorine in the water. When the filtration completed, the turbidity of water, chroma and pollution will all reduce

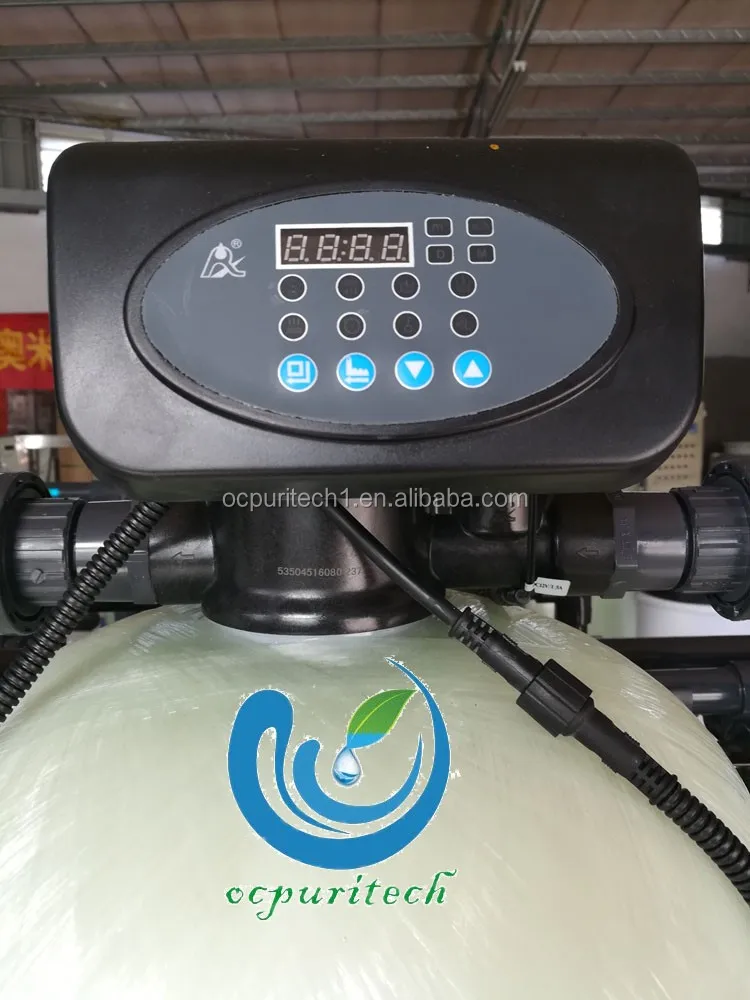

Softener

Softener is mainly used to remove calcium, magnesium and certain other metal ions .It will protect the membranes from scaling and blocking



Product Details



Design Basic

The source water is underground water, river water or tap water. And the basic requirements are as below:

1. Inflow total dissolved solids content:1000PPM

2. Water temperature: 5-45 degree.
3. PH range: 6.5 - 8.5
4. Hardness: 600mg / L (caco3)
5. Turbidity: ≤ 10NTU
6. Pollution Index: SDI <5
7. Iron: <0.3mg / L
( If iron >0.3 and manganese >0.1, Iron remove filter recommended)

8. Free chlorine: <1mg / L

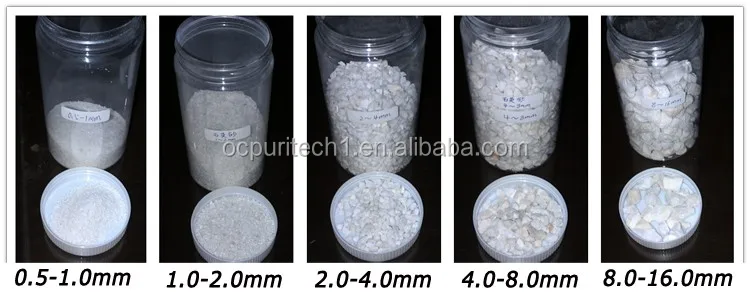

Quartz Sand





Applications:



Pretreatment system is widely used in agricultural irrigation, chemical, petroleum,metallurgy, mining and other industries.





Product Show

















Certifications



Our Services

1.Provide complete OEM or ODM water treatment solution based on your source water



2.Provide free technical training and full good after service.



3.We have professional QC team to check the quality before delivery



4.Strong  carton to protect the products



3.Reply in 24 hours.



5.Lead time for water filter cartridge is  5-7 working days

   Lead time for water treatment system is 7-15 working days



Company Information

Guangzhou Aomi Water Purification System Manufacture Co., Ltd is specialized in a Water Purifier for household and industrial water treatment. Our main products include RO device, Ultrafiltration, Microfilter, sand, and carbon filter equipment, etc. These products completely set of equipment for school, factory, and hospital. Besides, we are manufacturing tap water and mineral water equipment.


We have been devoted ourselves to Water RO System for many years, and our engineers can make different types of water treatment equipment. We have the expertise to manufacture water treatment equipment of different sizes, capacity, and optional functions. And we also provide relative products such as FRP tank, valves, filter cartridge, and membranes, etc. Under our excellent products and patience service, we have earned a great reputation for our product quality, performance reliability, and business integrity.

product-Ocpuritech-Sand and Activated Carbon Filter for Drinking Water Purification Plant-img-4

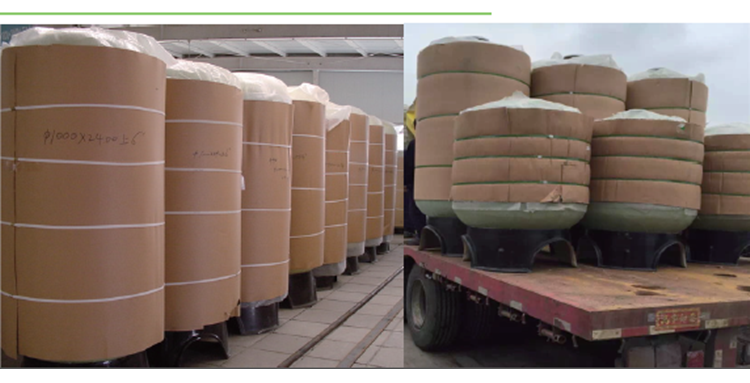

Packaging & Shipping

1)Packaging:plastic film+wooden case.





2)Shipping:usually by sea,but will choose the most suitable shipping method based on your requests.



FAQ

1.Do you have water analysis report ?

The report can appear your water quality by TDS ,or some metal element content.



2.what is your application of the output water ?

Like direct drinking, industrial use or bottled water.



3.What is the minimum quantity ?
 1set/pcs ,If with large quantity ,there will be a special discount or wholesale price.



4.Are you manufacturer or trading company?
 We are the Top professional manufacturer in China, more than10 years experience in the water treatment.



5. Does your machine have any certificate?

Yes, all of our machine has CE certificate.



6.How long the warranty will be?

1 year warranty for the machine.
