Company Advantages1. Precise and high-end filter prevents particles, including bacteria, viruses into RO membrane.
ultrafiltration system ultrafiltration water treatment offered by Ocpuritech water treatment are used for uf filtration.
2. The fame of Ocpuritech is widely increasing for its high quality ultrafilter. Water Treatment System can be very easy to maintain
3. High-level materials ensure the great durability of products. uf filter,ultrafiltration filter has superiority of ultrafiltration system.
4. Water treatment system can be applied into a wide variety of places, like laboratory, hospital,etc. The wide used foreground of ultrafilter,
ultrafiltration water treatment is proved over a long period of time.
5. uf filter has stable performance and long storage time. By using water treatment system, the reuse of water can be effectively improved
Inlet water requirements
PH | 2-11(Cleaning 2-12) |
Temperature | 5-45℃ |
Turbidity | PVC ＜15NTU ,PVDF＜25NTU |
Instantaneous Max.residual chlorine | 100ppm（less than10 min.） |
Ozone concentration | ＜0.5mg/L |
Grease amount | ＜2mg/L |
Iron amount | ＜1mg/L |
Undissolved solids amount | ＜0.5wt% |
UF Running parameter
Control type | Mechanical power control／Mini controller/PLC
( touch screen option） |
Recovery rate | ≥85% |
Running types | Cross-flow/dead-end flow |
Filtrate Flux @25C | PVC:35-100L/m2. 1bar.
PVDF:40-120L/m2. 1bar. |
Inlet pressure | PVC ＜2bar ,PVDF＜1.5bar |
Backwash pressure | ＜2bar |
Pressure differential | PVC ＜2bar ,PVDF＜1.5bar |
Cleaning pressure | PVC ＜2bar ,PVDF＜1.5bar |
Flow Chart

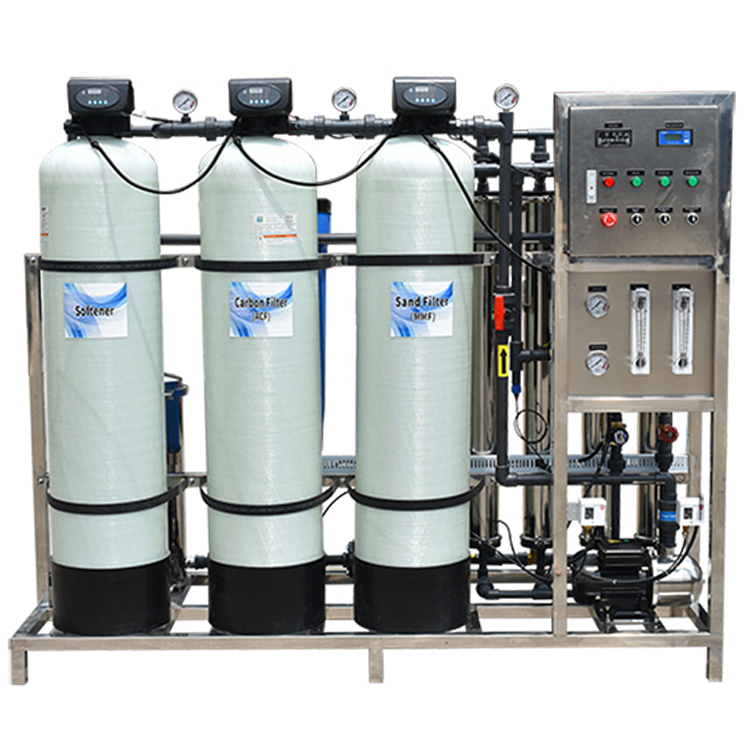

Raw water pump- sand filter - carbon filter - softner - Security Filter - UF systems host- produce water
Ultra-filtration technology Introduction
Ultra-filtration technology is a pressure driven
membrane separation process that removes suspended or particulate matters (including colloids & silt) from water. It serves as a pretreatment for surface water, sea water and biologically-treated municipal effluent before reverse osmosis and other membrane systems. This solution is far more reliable than a conventional multimedia filter. In addition to superior turbidity removal, UF membranes efficiently remove bacteria and most viruses.
Various kinds pure water , ultra pure water pre-processing;
Waste water reuse eliminate suspended substance;
Tap water eliminate peculiar smell;
River water, Waste water, groundwater to filter , eliminate lron , Manganese;
Service water filters.
Scope Of Application Of The Equipment
◪Widely used in recycling automobiles, electrical appliances, tractors, bicycles, locks, glasses, lighters and other metal manufacturing industries electrophoretic coating production lines electrophoretic paint.
◪Electrophoretic paint production line of key equipment, the use of ultrafiltration machine, you can increase 30-40% of the cost of the use of electrophoretic paint, paint electrophoresis bath to avoid contamination, and improve the life of electrophoretic paint and greatly improve the quality of electrophoresis electrophoresis artifacts.
◪The system of industrial water, natural water purification, brewery, pharmaceutical, dairy, etc. related to water treatment industries.
◪Industry use, city home use. Suitable for relatively clean water.
