Material | PP |
Use | Industrial water filter cartridge |
Dia. Of Inlet & Outlet | 1” |
Operating TEMP | 4-52℃ |
Normal Operating Pressure | 60PSI |
Max. Operating Pressure | 125PSI |
Suitable cartridge | 20’’ PP/GAC/CTO jumboo filter cartridge |
1‘’ inlet and outlet ,multiple sizes can be available (1.25" and 1.5", with/ without brass inlet/outlet)

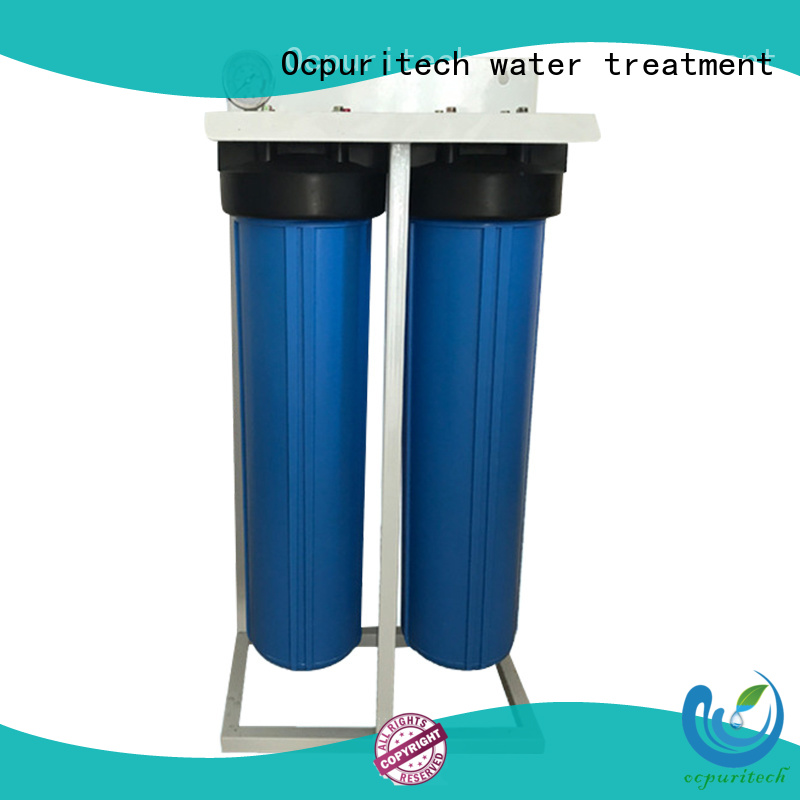

20 inch 2-stage jumbo blue filter housing pretreatment is made of rugged reinforced Polypropylene (PP) and Styrene Acrylonitrile (AS), Excellent jumbo blue housings are for residential applications such as reverse osmosis systems, food/beverage service industry. It can be used as pre and post filtration with your RO system. The Water filter housing is made of high quality PP filter cartridge and CTO filter cartridge .To avoid leakage, the thicker housing and rib design can withstand high pressure and have strong structure.
Main Features
1) Highly efficient disinfection.
2) Without secondary pollution.
3) Large volume of continuous disinfection.
4) Easy operation and lower maintenance costs, safe ,Wide Application.
6)UV systems are compact and easy to install
7)No additional chemicals
Under the sink , residential use filtration, Pretreatment of reverse osmosis filtration, food clean service ,lab, water Station.
With the continuous advancement of industrialization, more and more sources of water pollution, the composition of water is becoming more and more complex, and the quality of water is declining. In this case, there is less and less potable water that can meet people's needs. Improving water quality is already imminent; we will use jumbo blue housing pretreatment, which can satisfy cleaning hands, food clean service, pretreatment reverse osmosis filtration etc.
3 stage blue housing systems with UV
2 stage blue housing pretreatment
CE certificate is a certification mark that indicates conformity with health, safety, and environmental protection standards for products sold within the European Economic Area (EEA).
The CE marking is also found on products sold outside the EEA, This makes the CE certificate recognizable worldwide even to people who are not familiar with the European Economic Area. It is in that sense similar to the FCC Declaration of Conformity used on certain electronic devices sold in the United States.
Our water treatment system and water treatment accessories all have been certificated by CE and provide 1 -year warranty, many clients are very recognized for the quality of our products, we are your trusted partners, contact us now!
5 STAGES 50GPD REVERSE OSMOSIS SYSTEM With 5 lamp display - Auto flushing
Flush type: auto flush with micro computer control
Big Flow:with 3.2G plastic tank
RO Water Output: 50GPD
Housing: double “O” Ring Housing
Fittings type: JACO
Diaphragm Booster Pump with
Adaptor 110 to 220V, 50 or 60HZ
Faucet: GF02C
Film CSM RO membrane
Size: 360*190*450mm
Functions of the filter cartridges:
Stage | Filter | Detailed Filter | Function |
1st | PP | PP Filter Element | Remove dirt, rust and sand particles from inlet water |
2nd | UDF | Granular Activated Carbon water Filter | Remove 99% of the chlorine and organic chemicals |
3rd | CTO | Bloack Activated Carbon Filter Element | Remove organics, color and odor |
4th | RO | RO membrance(0.0001um) | Remove all kinds of bacteria, virus and hardness ; |
5th | T33 | Activated Carbon Filter Cartridge Element | Improve the taste of the water |
Filter Cartridge Function :
1.PP filter cartridge: Can effectively filter the water rust, sand and other coarse solids.
2.GAC filter cartridge: granular activated carbon adsorption of high organic matter can be effectively adsorbed water, odor, chlorine and residues of chemicals.
3.CTO(carbon block) filter cartridge: Remove the pesticides, chlorine,other organic matter, iron and manganese,odor, color and strong carcinogen chloroform.
4.RO membrance: Remove the heavy metal ,harmful soluble solid ,bacteria, virus,other dissolved matter and chemical drug in the running water.
5.Alkaline Filter: adjust the water PH number to health the body.
6.Post Carbon Filter (T33) filter cartridge: Again remove chlorine,odor,which can improve the taste of pure water.
Filter Cartridge Uselife:
Each type filter cartridge uselife base on water quality, usually China market uselife as below
1.PP filter cartridge: 3-6 months
2.GAC filter cartridge: 6-12 months
3.CTO filter cartridge: 6-12 months
4.UF membrane: 24-36 months
5.T33 filter cartridge: 6-12 months
